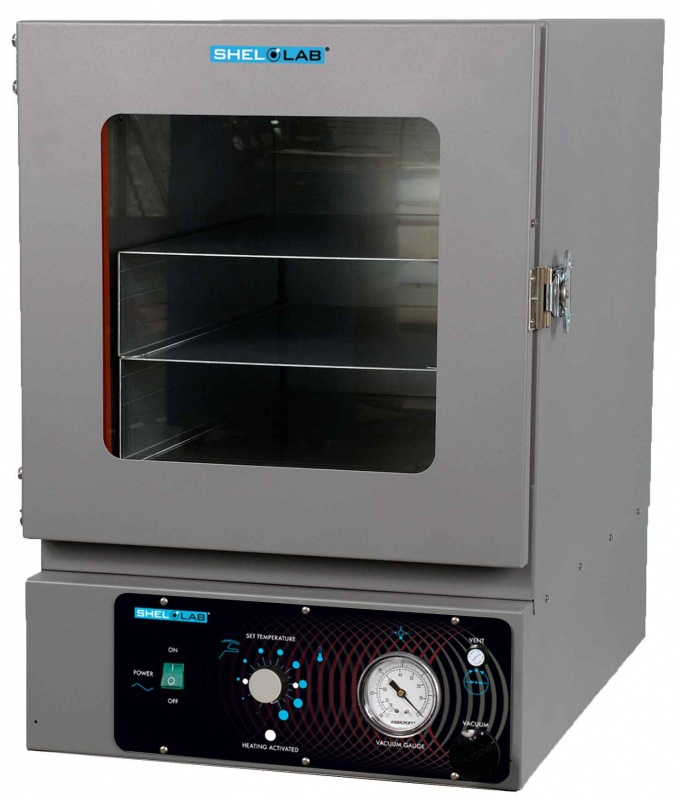

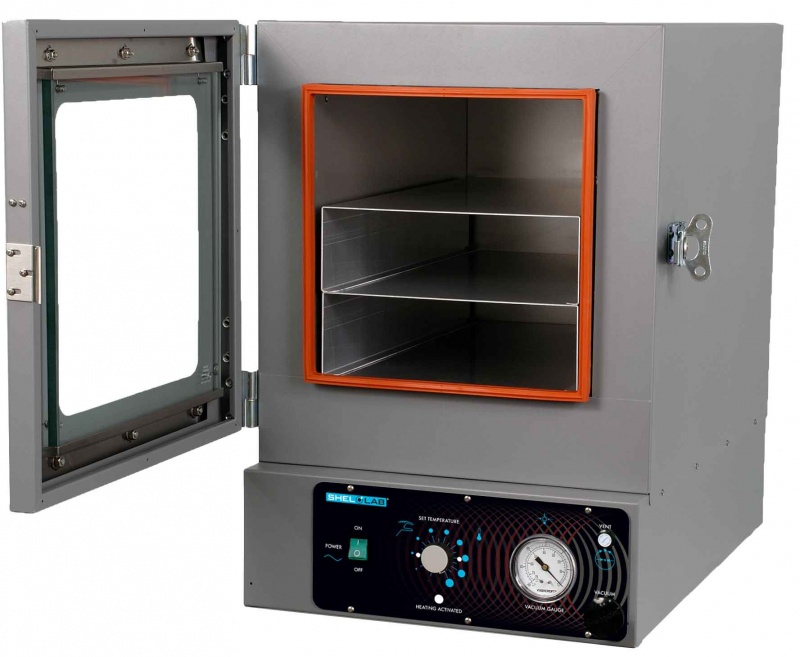

SVAC1E, SHEL LAB Economy Vacuum Oven, 0.6 Cu.Ft. (17 L), 1 EACH



Product Details

SHEL LAB vacuum ovens provide exceptional capabilities for fast and gentle drying of heat sensitive materials.  They prevent residue accumulation on products and also allow safe drying of materials at lower temperatures than typically required when using convection ovens.


These units feature a radiant heating system that optimizes chamber space and provides excellent heat transfer and temperature uniformity.  All SHEL LAB vacuum ovens are built with stainless steel chambers that are easy to clean and have exceptional durability.


The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life.  The tempered glass viewing window allows for safe, continuous monitoring of samples.  A selection of gaskets (for specific applications) and a small bench top footprint increase the versatility of these ovens.


The SHEL LAB Vacuum Ovens are equipped with silicone gaskets. While these gaskets resist a wide variety of temperatures and pressures, they can breakdown in the presence of solvents and acids. For solvent applications, we recommend using Buna gaskets. For acidic applications, we recommend using Fluorosilicone or Viton® gaskets.


For more information about the gaskets we offer, see our Vacuum Oven Gasket Guide.


Please note that this vacuum oven does not include a pump or related accessories. Contact your SHEL LAB distributor for assistance with choosing the ideal pump and accessories for any application.


The SHEL LAB economy series of vacuum ovens are outstanding in any application. Features include:

      • Analog Temperature_Control


      • Cross Ventilation Air Flow Design


      • Achieve Impressive Vacuum Levels


      • Sizes Range from 0.6 – 9 Cu.Ft.


      • Built-in Overtemperature Protection


      • 5 year warranty on parts and labor

Heat-up (min):90 min to 150C
Shelving:2 Supplied
Temperature Uniformity:+/-3.0 at 60 °C, +/-9.0 at 120 °C, +/-13.0 at 200 °C
Temperature Range:Ambient +/- 15 °C to 210 °C
Exterior Dimensions WxDxH in. (cm):15.5 x 19 x 22.5 (39.4 x 48.3 x 57.2)
Interior Dimensions WxDxH in. (cm):9 x 12 x 9 (22.8 x 30.4 x 22.8)
Capacity:0.6 Cu.Ft. (17 L)
Maximum Energy Consumption (W):600/575




All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
