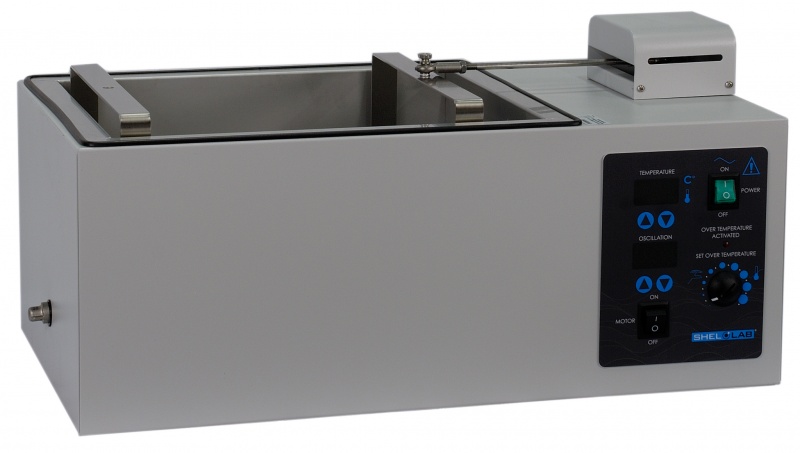

SWBR27, SHEL LAB Shaking Water Bath, 27 Liter Capacity, 1 EACH



Product Details

SHEL LAB Reciprocating Water Baths deliver precise temperature control and a smooth reciprocal shaking motion. Temperature and oscillation controls feature an easy to read P.I.D. microprocessor temperature controller and an independent safety thermostat.

The bath may be used with or without oscillation. Shaking speed is variable from 20 to 200 oscillations per minute, and the stroke length can be adjusted to three separate settings: 0.5, 1.0, or 1.5 inches to minimize the chance of accidental spillage. Also, the unique basket support system is designed to eliminate tank wear, yet still provide full support and free action for a heavily loaded basket.

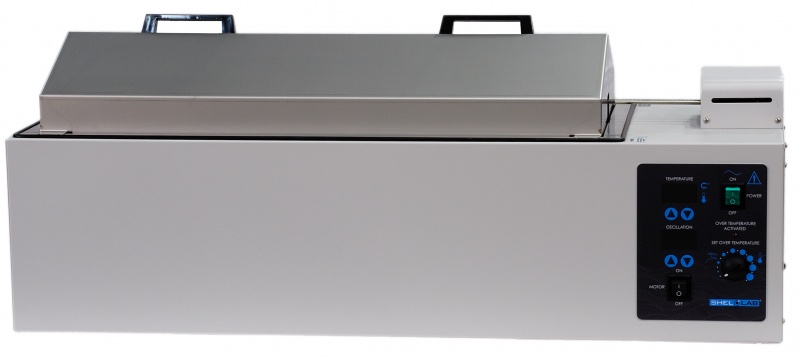

A durable finish on the housing prevents corrosion and chipping. In addition to having stainless steel tank, the bath platform tray is designed for optimum temperature uniformity. Maximum temperature is achieved using the stainless steel gable cover, which is designed to prevent condensate from dripping onto samples and assures uniform temperature conditions. These units feature:

    • Microprocessor Control

    • Independent Oscillation and Temperature_Controls

    • Recessed Heating Element to Prevent Burnout

    • Adjustable Stroke Length

    • Thermometer Clip

    • 24 Month Limited Warranty *excludes tank

“It’s very nice to see that your company respects the customer and will go way beyond the norm in satisfying my problem with an old water bath. I am now advertising YOUR company in my shop for any lab equipment and that your company, SHEL LAB, does support the customer and doesn’t forget you after you made a purchase. It’s a pleasure doing business with SHEL LAB and again you will be the first company that I bring up in a conversation on standing by their equipment."

Eugene Modzelewski, Senior Electronics Technician, Yale University

Weight:79 lbs
Oscillation Rate:20-200 RPM
Platform Dimensions:24.5 x 11 x 7.7 (62.2 x 27.9 x 19.6)
Agency Approval:CE
Temperature Uniformity:+/-0.2 °C (at 37 °C)
Temperature Range:Ambient +5 °C to 80 °C
Exterior Dimensions WxDxH in. (cm):37.5 x 14.8 x 12.5 (95.3 x 37.5 x 31.8)
Interior Dimensions WxDxH in. (cm):27 x 12 x 7.2 (68.5 x 30.4 x 18.4)
Capacity:27 L
Maximum Energy Consumption (W):1035/1150


All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
