SMO5CR-2, SHEL LAB Cleanroom Oven Model SMO5CR-2, 3.9 Cu.Ft. (110 L) 220V, 1 EACH


Price $16,939.00 +Add to wishlist +Email Friend

Product Details

Request Info

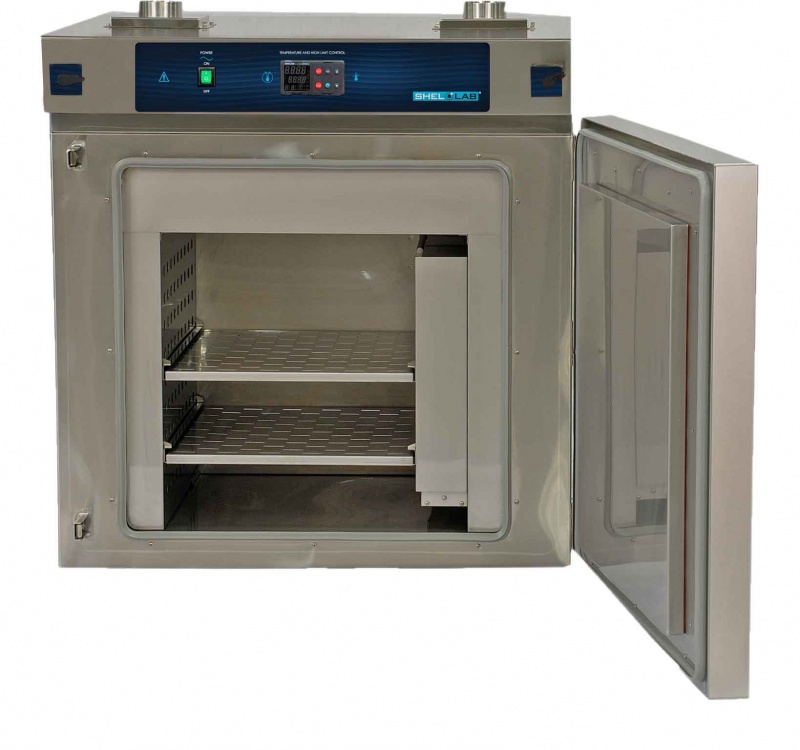

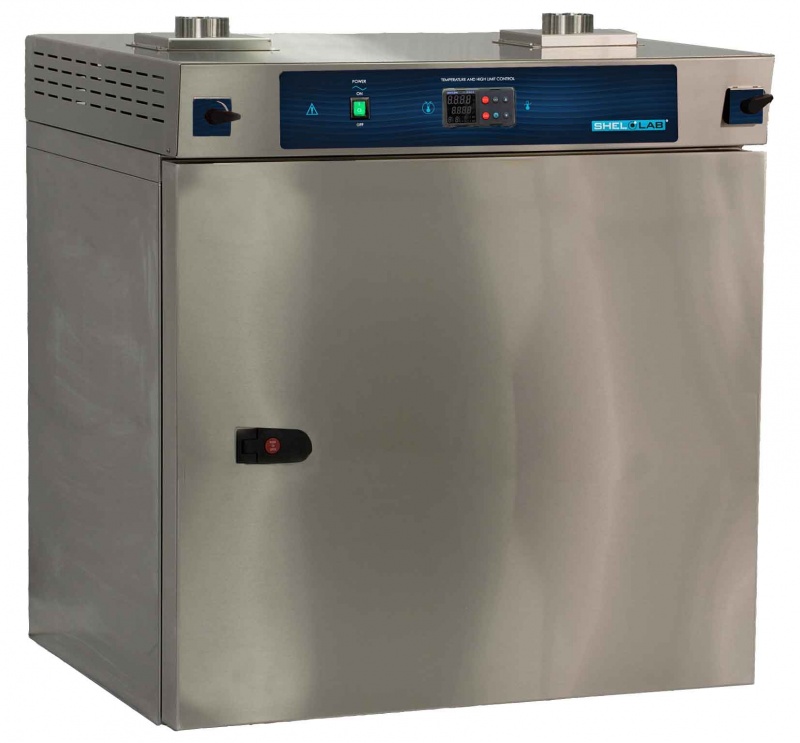

The SHEL LAB clean air oven incorporates all the special features needed for high temperature cleanroom work: an all heliarc-welded stainless steel interior, two adjustable perforated stainless steel shelves and rapid heat recovery.  The Watlow controller is capable of a 40 step ramp and soak profile, or 4 files with 10 steps per file.


These units also have three adjustable air intake and exhaust ducts that are easily removed for cleaning and allow the use of either room or recirculated air. The SHEL LAB cleanroom oven is made with 3.5 inches of high-temperature, wrap-around insulation and a high-temperature silicone door gasket.


SHEL LAB ovens are available in a broad array of sizes, styles and technology. Some features include:



      • Horizontal Air Flow


      • Encapsulated Insulation


      • Nitrogen Purging


      • Watlow Controller


      • HEPA Filter (Class E11 – > 95% Retention)


      • Stainless Steel Interior & Exterior<symbol);>


      • Built-in Overtemperature Protection


      • 5 year warranty on parts and labor


Heat-up (min):10 min to 110 °C (35 min to 180 °C)
Shelving:2 Supplied (8 Maximum)
Temperature Uniformity:+/-1.0 °C at 110 °C
Temperature Range:20 °C above ambient to 260 °C
Exterior Dimensions WxDxH in. (cm):35 x 29 x 38 (89 x 73.7 x 96.5)
Interior Dimensions WxDxH in. (cm):17 x 20 x 20.125 (43.2 x 50.8 x 51)
Capacity:3.9 cu.ft. (110 L)




All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
