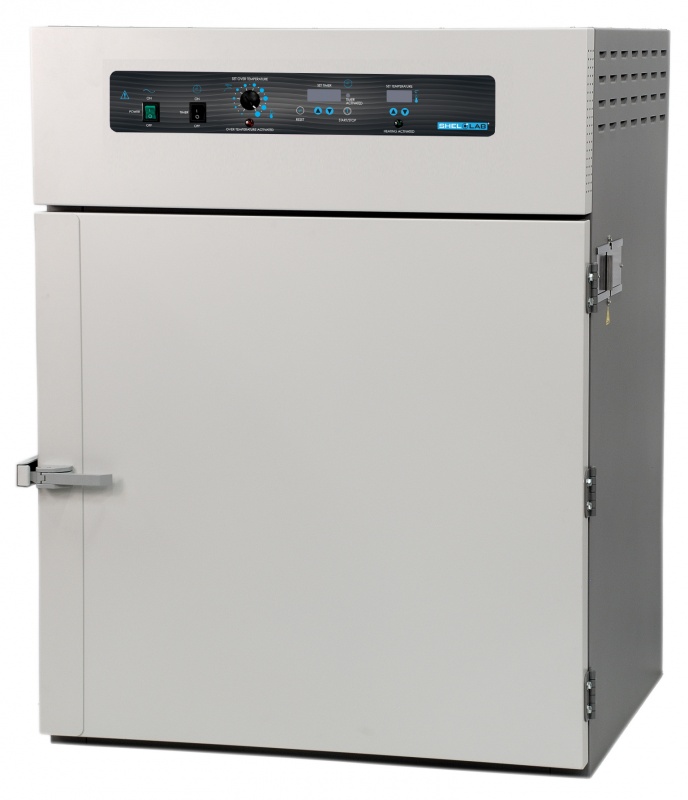

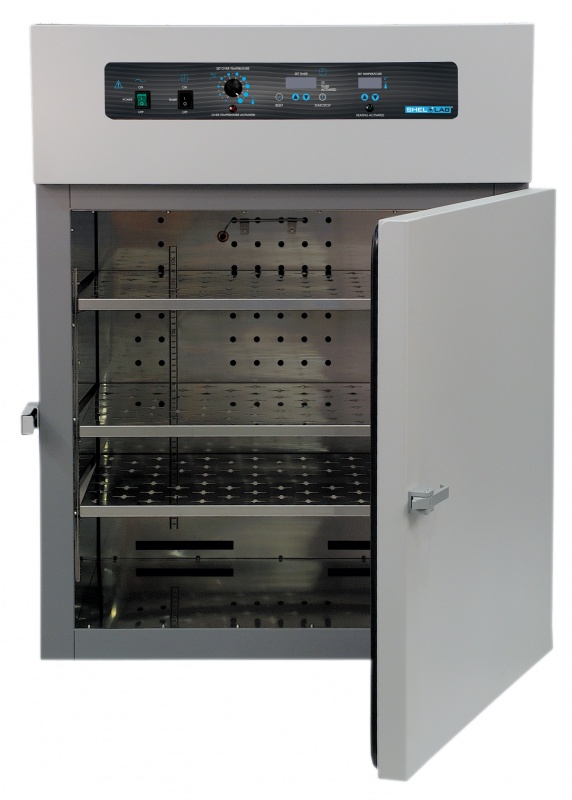

SMO14-2, SHEL LAB Forced Air Oven, 13.7 Cu.Ft. (387 L) 220V, 1 EACH

UOM: EA SKU: SMO14-2

Quantity

Product Details

The SHEL LAB SMO14-2 features 14 cubic feet of economical oven space (consider the SMO14HP-2 for the same amount of space with superior uniformity). The independent overtemperature safety feature is user adjustable and provides added safety. The forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing and baking. These units are especially ideal for glassware drying.















There are several models to choose from in the forced air product line, with varying sizes and control features. The large capacity units are perfect for high volume sample and drying applications, including production processes.















SHEL LAB ovens are available in a broad array of sizes, styles and technology. Some options include:



























      • Three inch Adjustable Exhaust Port






































      • Stainless Steel Shelves






































      • Independent Overtemperature Safety






































      • High Temperature Silicone Door Seal






































      • No Exposed Heating






































      • Wrap Around Insulation






































      • Durable Powder Coat Paint Exterior Finish






































      • Digital Timer






































      • 5 year warranty on parts and labor


























SKU:SMO14-2
Weight:360 lbs
Heat-up (min):24 min to 150 °C
Shelving:3 Supplied (8 Maximum)
Agency Approval:TUV - CUE
Temperature Uniformity:+/-3 °C at 150 °C
Temperature Range:15 °C above ambient to 260 °C
Exterior Dimensions WxDxH in. (cm):37.8 x 34.0 x 48.0 (95.9 x 86.4 x 122.0)
Interior Dimensions WxDxH in. (cm):30.7 x 24.7 x 31.0 (78.1 x 62.8 x 78.7)
Capacity:13.7 Cu.Ft. (387 L)































All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
