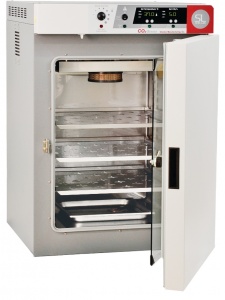

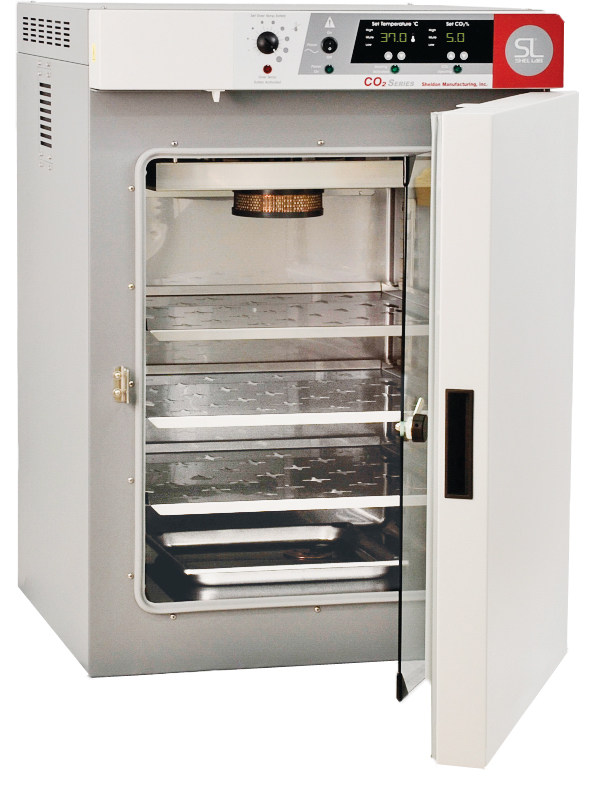

SCO5A, SHEL LAB CO2 Air Jacketed Incubator, 5 Cu.Ft. (142 L), 1 EACH



Product Details

Model SCO5A is ideal for sensitive tissue and cell culture applications.  It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Standard Design Features:

    • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability

    • Unique air jacket design provides excellent temperature uniformity of +/-0.25 °C at 37 °C

    • Humidity levels maintained through evaporation of up to 95%

    • Data logging capabilities

    • Designed to minimize contamination; includes:

        • Patented copper-caged HEPA filter

        • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door

        • Durable stainless steel chamber for easy cleaning

        • Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber

        • Copper shelving option

        • Autoclavable shelving system

    • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Weight:250 lbs
Overtemperature Alarm:Yes
Access Port:1.45 inches
Shelving:3 Supplied (8 Maximum)
Relative Humidity Range:up to 95%
Jacket Type:Air
CO2 Recovery Rate:< 5 minutes
CO2 Sensor:IR
CO2 Range:0-20%
Agency Approval:TUV
Temperature Uniformity:+/-0.25 °C at 37 °C
Temperature Range:Ambient +8 °C to 60 °C
Exterior Dimensions WxDxH in. (cm):27.3 x 28.5 x 37.8 (69.3 x 72.4 x 96.0)
Interior Dimensions WxDxH in. (cm):20.5 x 19.7 x 21.5 (52.1 x 50.0 x 54.6)
Capacity:5 Cu.Ft. (142 L)
Maximum Energy Consumption (W):720
Split Inner Glass Chamber Door:Optional
Data Logging Capabilities:Yes


All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
