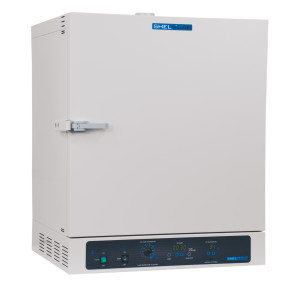

SMO5, Oven, Forced Air, 5 CuFt, 115v, 1 EACH



Product Details

The SMO5 is equipped with a stainless steel interior for long life operation and easy cleaning. With triple wall construction, this oven’s walls minimize external wall temperature which meets CE requirements to keep work-spaces cool.


These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning and life cycle testing.


This unit has a quick ramp-up time to 306 °C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.


The SMO5‚Äôs forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.


Features of this oven include:

      • Embedded Microprocessor Control with Countdown Timer


      • Horizontal Forced Airflow


      • 1.75in (4.5cm) Access Port


      • UL/CSA Approved


      • CE Approval


      • DIN 12880 Compliant


      • 5 year warranty on parts and labor

Weight:208 lbs
Heat-up (min):28 minutes to 150 °C
Shelving:2 Supplied (9 Maximum)
Temperature Uniformity:+/-1.75 °C at 150 °C
Temperature Range:20 °C above ambient to 306 °C
Exterior Dimensions WxDxH in. (cm):31.4 x 28.1 x 38.8 (79.8 x 71.4 x 98.5)
Interior Dimensions WxDxH in. (cm):21.0 x 19.4 x 20.7 (53.3 x 49.4 x 52.7)
Capacity:4.9 Cu.Ft. (138 L)




All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
