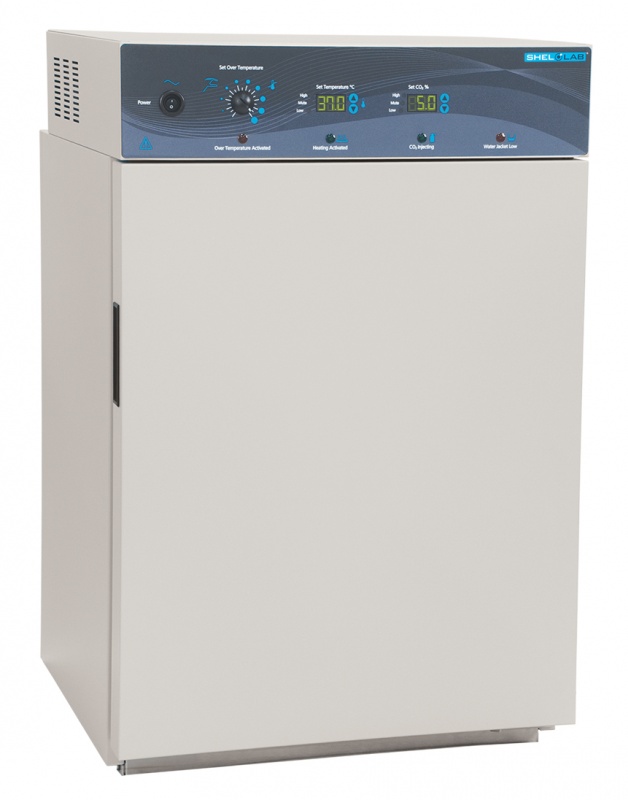

SCO6WE, SHEL LAB CO2 Water Jacketed Incubator, 6 Cu.Ft. (171 L), 1EACH



Product Details

Model SCO6WE is our basic water-jacketed CO2 incubator and is ideal for laboratories with tight budgets.   It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubation needs. Although they do not have a humidity display, the extremely stable temperature environment maintains constant humidity through evaporation at up to 95%.

Standard Design Features:

    • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability

    • Unique water jacket design provides excellent temperature uniformity of +/-0.2 °C at 37 °C

    • Data logging capabilities

    • Designed to minimize contamination; includes

        • Durable stainless steel chamber for easy cleaning

        • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door

        • Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber

        • Copper shelving option

        • Autoclavable shelving system

    • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Weight:260 lbs
Overtemperature Alarm:Yes
Access Port:1.75 inches
Shelving:3 Supplied (16 Maximum)
Relative Humidity Range:up to 95%
Jacket Type:Water
CO2 Recovery Rate:< 5 minutes
CO2 Sensor:IR
CO2 Range:0-20%
Temperature Uniformity:+/-0.2 °C at 37 °C
Temperature Range:Ambient +8 °C to 60 °C
Exterior Dimensions WxDxH in. (cm):26.0 x 26.3 x 40.3 (66.0 x 66.7 x 102.2)
Interior Dimensions WxDxH in. (cm):20.2 x 19.7 x 25.2 (51.4 x 50.1 x 64.1)
Capacity:6 Cu.Ft. (171 L)
Maximum Energy Consumption (W):600
Split Inner Glass Chamber Door:Optional
Data Logging Capabilities:Yes


All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ¬± 3) °C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
